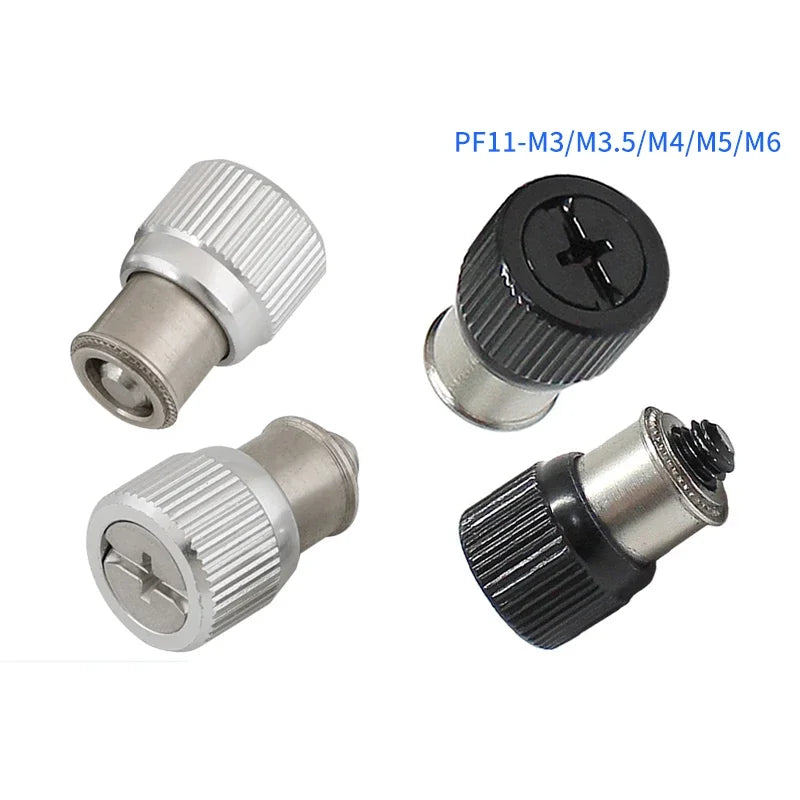

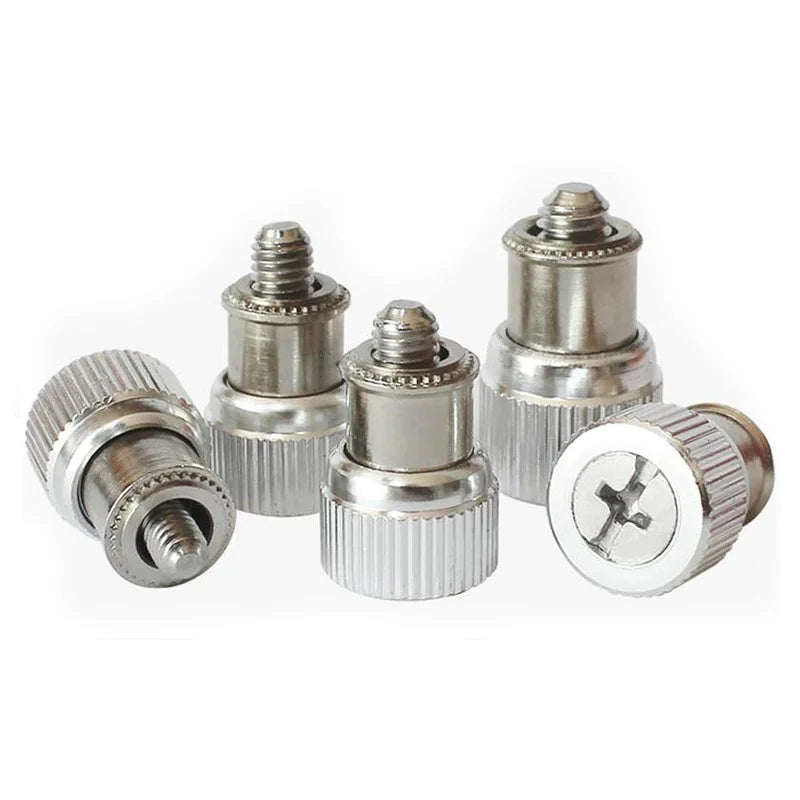

PF11 M3M4M5M6 silver black Spring panel screw plate min thickness A=0.92mmSelf-Clinching pressured riveting screw board fastener

In stock Low MOQ Fastener specialist Custom & OEM

Price range: $25.90 through $41.20

Request a quote
Ship to
Select a country to estimate shipping
Payment methods
Bank Transfer (T/T)

Description

MaterialCarbon steel screw  And alimium steel
ColorSilver or Black cover

 PF11 M3M4M5M6 silver black Spring panel screw plate min thickness

A=0.92mmSelf-Clinching pressured riveting screw board fastener

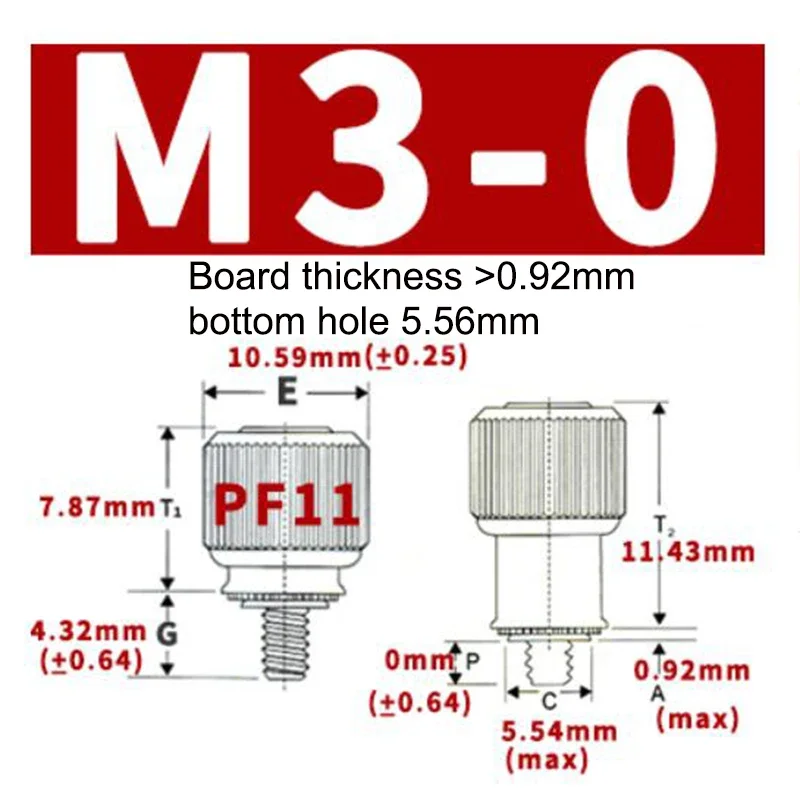

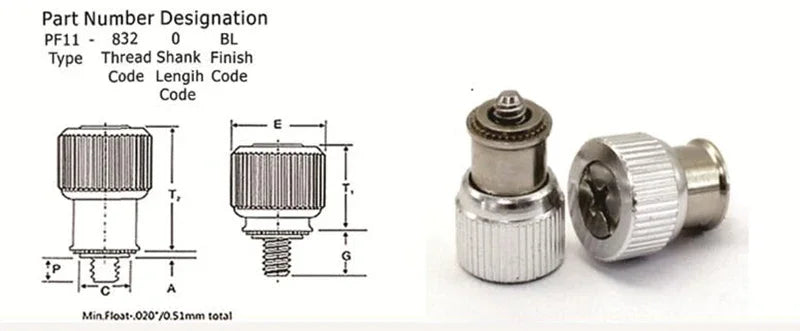

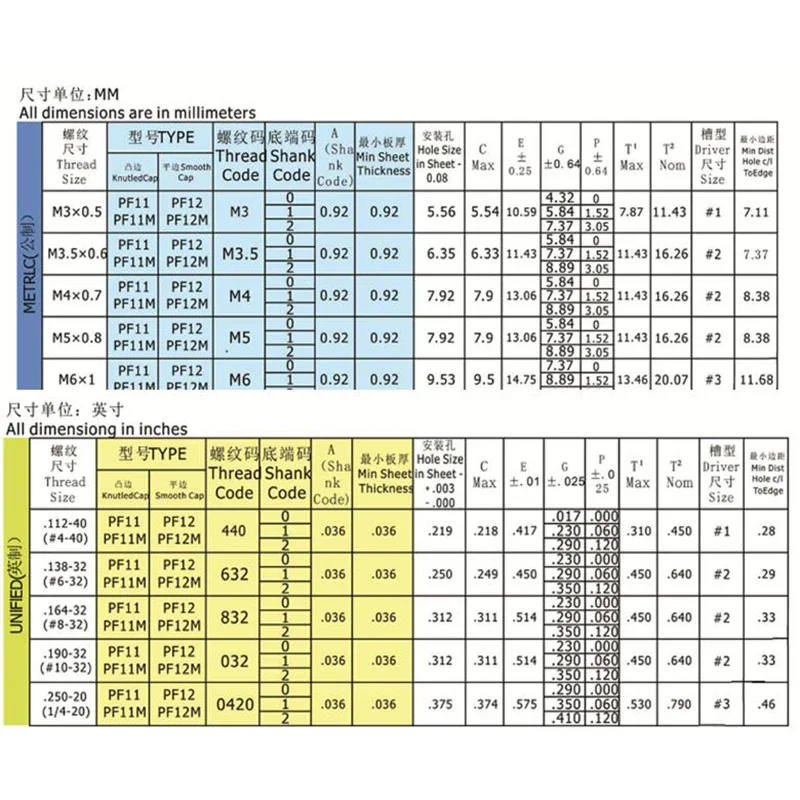

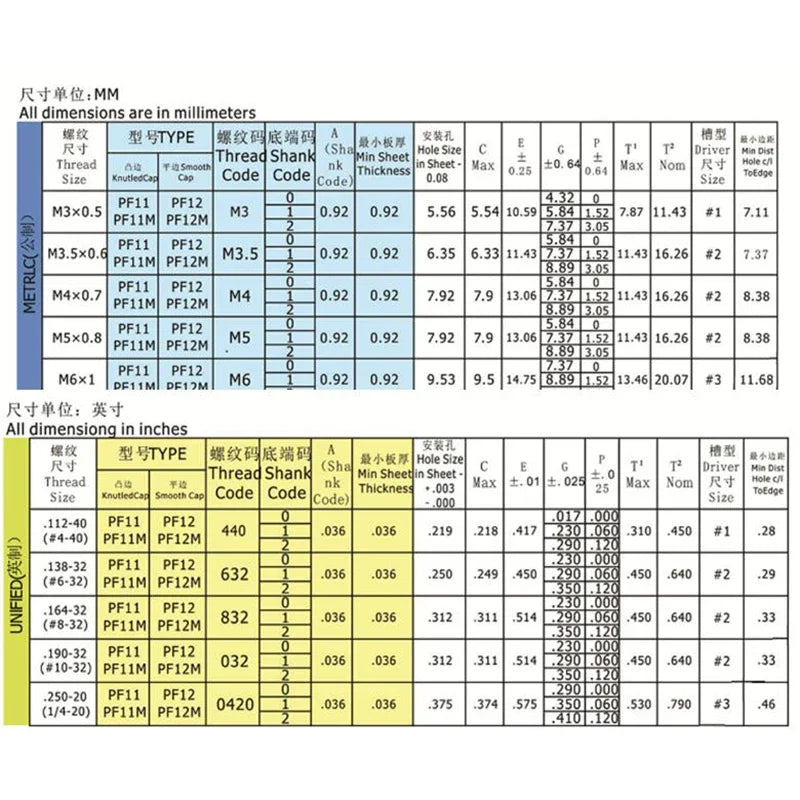

Spec:  PF11-M3M4M5M6

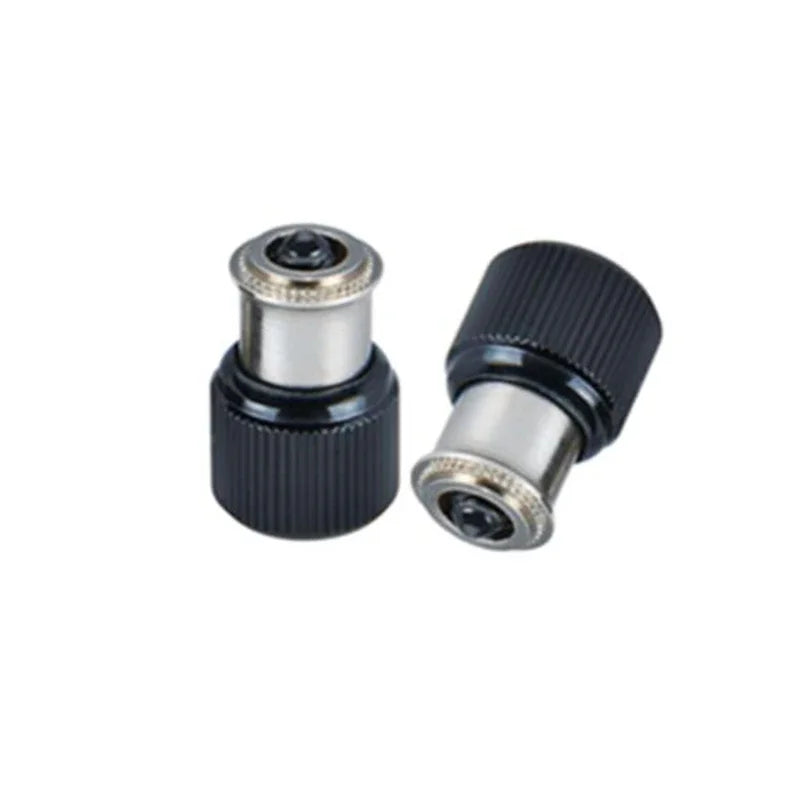

Black color = BL

Min plate thickness A=0.92mm








Application:

the pressed nut be using for installing on  steel thin board ,

need pre-drilling hole on thin board.

1 side of nut have knurled tooth,fasten to the board hole by the tooth.

usually the board drilling hole smaller than the knurled tooth outer dia.

the Hardness of the thin board for this Crabon steel nut should less than 70RB



Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.

Lead timeIn-stock items ship within 24 hours; bulk and custom orders 5–10 business days.
Minimum orderLow MOQ with volume pricing tiers for trade buyers.
Worldwide deliveryDHL, FedEx and sea freight — fully tracked to your door.
Returns30-day returns on unopened items; free replacement if damaged in transit.
Customer serviceDedicated trade team, Monday–Friday.

Flexible, secure payment options for both one-off purchases and recurring bulk orders.

Accepted methodsVisa, Mastercard, Amex, Apple Pay, Google Pay and bank transfer (T/T).
Secure checkoutSSL-encrypted and PCI-compliant — your data stays safe.
Trade termsNet 30 / 60 for approved accounts; deposit + balance for large orders.
CurrencySettled in store currency with multi-currency checkout.

Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.

Material Carbon steel / Stainless steel
Material grade 8.8
Finish Zinc plated
Thread standard DIN 933 / ISO 4017
Head type Hex head
Tensile strength 800 N/mm²
Coating Zinc plated
Country of origin CN
SKU —
Bulk pricing

Specification & price

Box MOQ — 2,000 pcs / box
Spec Price Stock Qty
Pf11 M3x0 / 50pcs $25.90 In stock
Pf11 M3x1 / 50pcs $25.90 In stock
Pf11 M3x2 / 50pcs $25.90 In stock
Pf11 M3x3 / 50pcs $25.90 In stock
Pf11 M4x0 / 50pcs $30.50 In stock
Pf11 M4x1 / 50pcs $30.50 In stock
Pf11 M4x2 / 50pcs $30.50 In stock
Pf11 M4x3 / 50pcs $30.50 In stock
Pf11 M5x0 / 50pcs $32.00 In stock
Pf11 M5x1 / 50pcs $32.00 In stock
Pf11 M5x2 / 50pcs $32.00 In stock
Pf11 M5x3 / 50pcs $32.00 In stock
Pf11 M6x0 / 50pcs $39.70 In stock
Pf11 M6x1 / 50pcs $39.70 In stock
Pf11 M6x2 / 50pcs $39.70 In stock
Pf11 M6x3 / 50pcs $39.70 In stock
Pf11 M3x0bl / 50pcs $28.50 In stock
Pf11 M3x1bl / 50pcs $28.50 In stock
Pf11 M3x2bl / 50pcs $28.00 In stock
Pf11 M4x0bl / 50pcs $32.00 In stock
Pf11 M4x1bl / 50pcs $32.00 In stock
Pf11 M4x2bl / 50pcs $32.00 In stock
Pf11 M5x0bl / 50pcs $33.10 In stock
Pf11 M5x1bl / 50pcs $33.10 In stock
Pf11 M5x2bl / 50pcs $33.10 In stock
Pf11 M6x0bl / 50pcs $41.20 In stock
Pf11 M6x1bl / 50pcs $41.20 In stock
Pf11 M6x2bl / 50pcs $41.20 In stock
