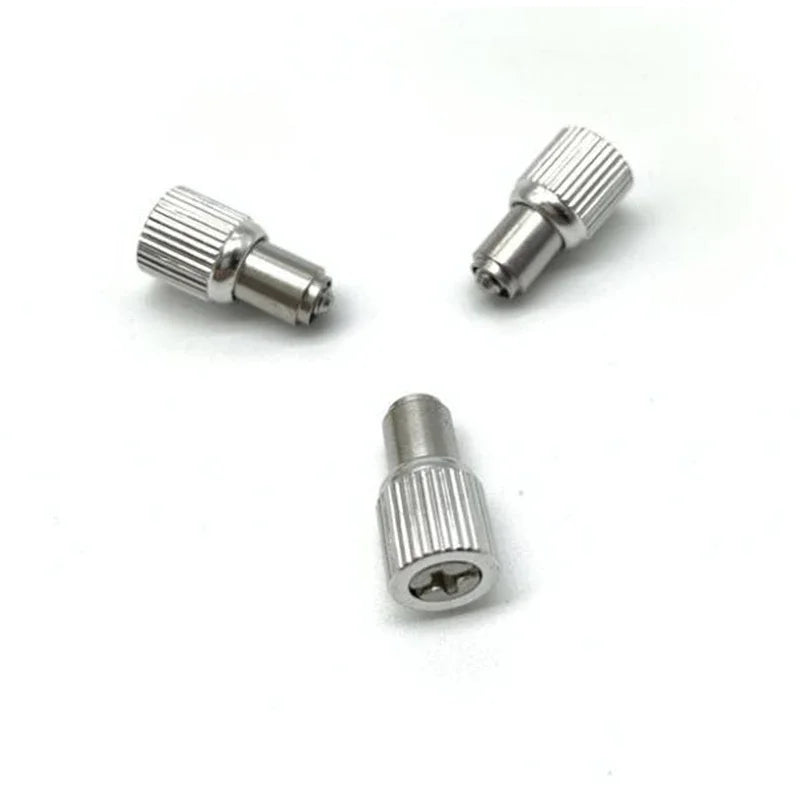

PF09-M3 Spring panel screw plate min thickness A=1.2-1.5-2-2.5mm Self-Clinching pressured riveting screw board fastener
Price range: $25.70 through $27.30
Description
| Material | Carbon steel screw And alimium steel |
|---|---|
| Color | Silver cover |
PF09-M2.5 M3 Spring panel screw plate min thickness A=1.2-1.5-2-2.5mm
Self-Clinching pressured riveting screw board fastener

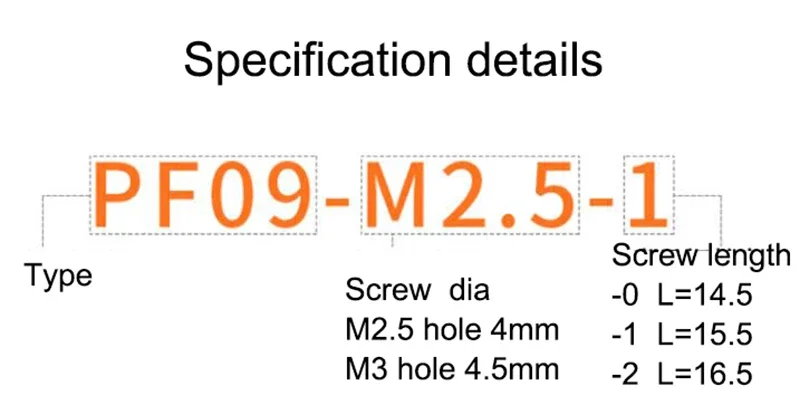

Spec: PF09-M2.5

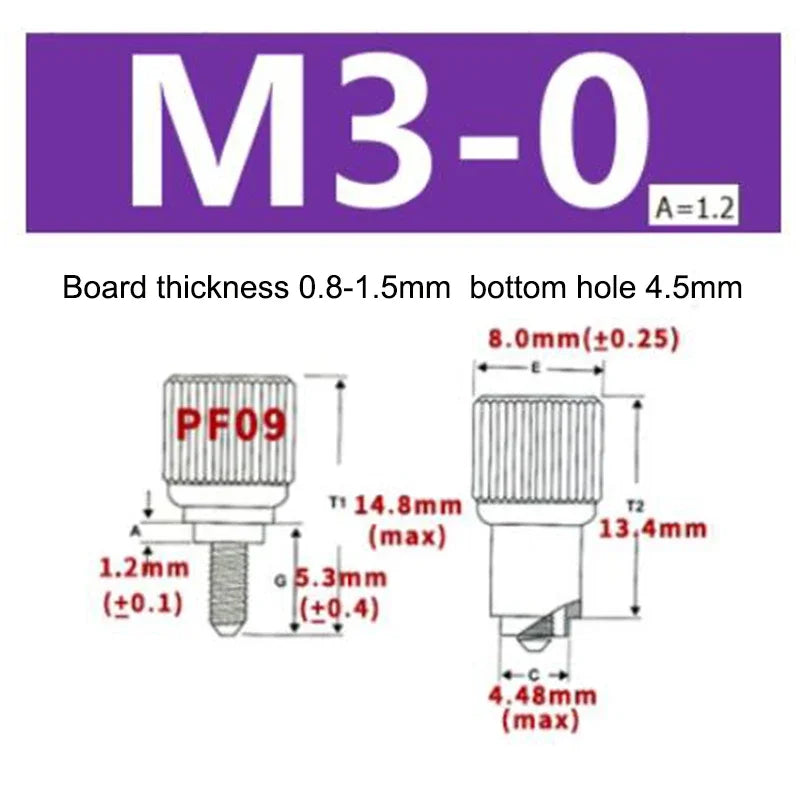

M2.5 Screw Length is 14.5 – 15.5 16.5mm
M3 Screw Length is 14.8 – 15.8 16.8mm

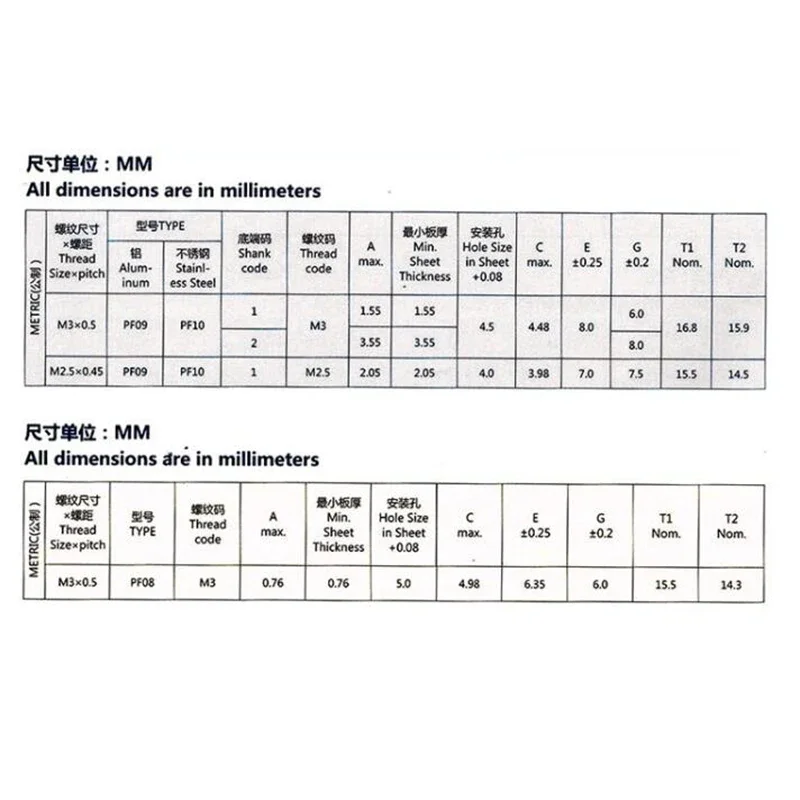

Min plate thickness A=1.2-1.5-2-2.5mm





Application:
the pressed nut be using for installing on steel thin board ,
need pre-drilling hole on thin board.

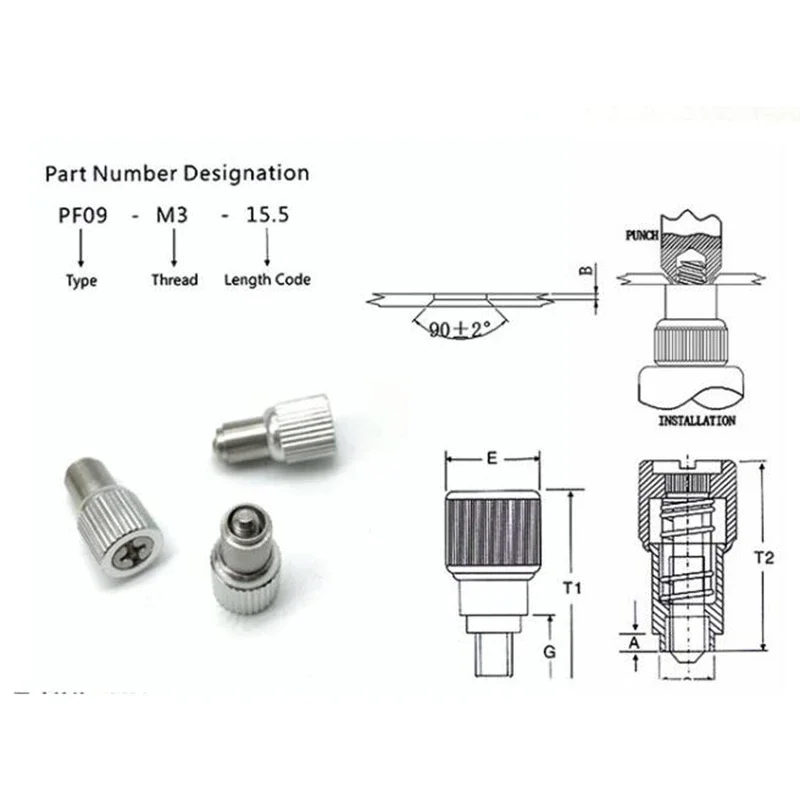

1 side of nut have knurled tooth,fasten to the board hole by the tooth.
usually the board drilling hole smaller than the knurled tooth outer dia.
the Hardness of the thin board for this Crabon steel nut should less than 70RB
Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.
Flexible, secure payment options for both one-off purchases and recurring bulk orders.
Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.
Specification & price
| Spec | Price | Stock | Qty |
|---|---|---|---|
| Pf09 M3x14 8a 1 2 / 50pcs | $25.70 | In stock |
|
| Pf09 M3x14 8a 1 5 / 50pcs | $25.70 | In stock |
|
| Pf09 M3x14 8a 2 0 / 50pcs | $25.70 | In stock |
|
| Pf09 M3x14 8a 2 5 / 50pcs | $25.70 | In stock |
|
| Pf09 M3x15 8 A 1 2 / 50pcs | $25.70 | In stock |
|
| Pf09 M3x15 8 A 1 5 / 50pcs | $25.70 | In stock |
|
| Pf09 M3x15 8 A 2 0 / 50pcs | $26.50 | In stock |
|
| Pf09 M3x15 8 A 2 5 / 50pcs | $26.50 | In stock |
|
| Pf09 M3x16 8 A 1 2 / 50pcs | $27.30 | In stock |
|
| Pf09 M3x16 8 A 1 5 / 50pcs | $27.30 | In stock |
|
| Pf09 M3x16 8 A 2 0 / 50pcs | $26.50 | In stock |
|
| Pf09 M3x16 8 A 2 5 / 50pcs | $26.50 | In stock |
|
