CS 2.5mm NBR Oring OD 7-27 mm rubber seal o-ring liquid seal washer gasket water proof
Price range: $12.50 through $38.80
Description
CS 2.5mm NBR Oring OD7- 27 mm thickness,rubber seal o-ring liquid seal washer gasket water proof

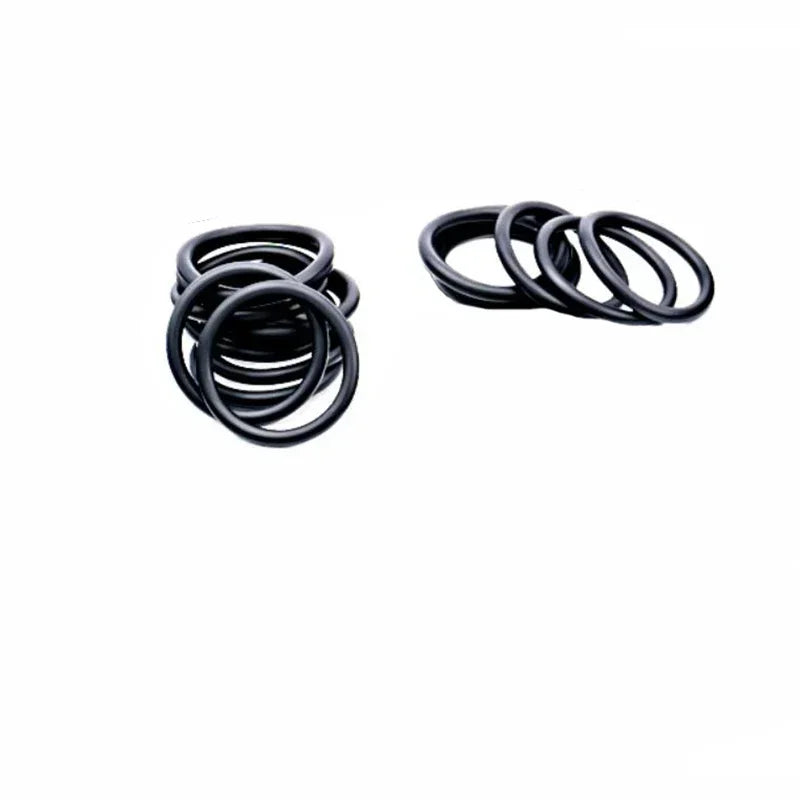

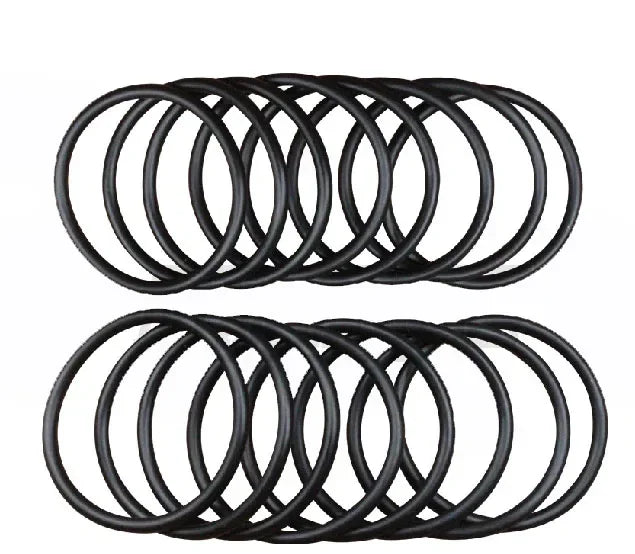

Item Name: rubber O-Ring
Material:NBR Rubber
Color:Black
Spec:thickness andOuterdiameter
“OD 20MM” means Outer diameter of O-ring is 20mm
thickness is 2.5mm
1000Pcs per lot
CS Oring line thickness(mm)
ID Oring inner diameter(mm)
OD Oring outer diameter(mm)
For more details pls contact us.
Information about material
Nitrile rubber (NBR):MaxTemperature 100 Celsius,good resistance to oil
Silicone rubber:(VMQ):MaxTemperature 200 Celsius,common oil resistant ,non-toxic good waterproof,
Viton:Tmax 280,good oil-resistant,wear – resistant corrosion – resistant
EPDM:Tmax 150,Good Oxidation resistance, ozone resistant and anti erosion,Common oil resistant.
polytetrafluoroethylene(PTFE):Tmax 280,non-stick very non-reactive Acid alkali resistance, resistance to organic solvents extremely low coefficient of friction.
Advantage:
NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkalines.
Weak point:
Not suit for polar solvent,ex.ketone,Ozone,nitro-hydrocarbon,MEK,chloroform
Application:
Fuel container , lube oil container,Hydraulic oil of oil ,silicone lube,water,
diester lube sealing.It’s widely used and lower cost for oil.
Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.
Flexible, secure payment options for both one-off purchases and recurring bulk orders.
Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.
Specification & price
| Spec | Unit price | Stock | Qty |
|---|---|---|---|
| od-7-mm / 1000pcs | $12.50 | In stock |
|
| od8-mm / 1000pcs | $13.30 | In stock |
|
| od9-mm / 1000pcs | $14.00 | In stock |
|
| od10-mm / 1000pcs | $14.80 | In stock |
|
| od11-mm / 1000pcs | $15.60 | In stock |
|
| od12-mm / 1000pcs | $16.40 | In stock |
|
| od13-mm / 1000pcs | $20.80 | In stock |
|
| od14-mm / 1000pcs | $21.50 | In stock |
|
| od15-mm / 1000pcs | $22.30 | In stock |
|
| od16-mm / 1000pcs | $23.10 | In stock |
|
| od17-mm / 1000pcs | $23.90 | In stock |
|
| od18-mm / 1000pcs | $24.60 | In stock |
|
| od19-mm / 1000pcs | $29.00 | In stock |
|
| od20-mm / 1000pcs | $29.80 | In stock |
|
| od21-mm / 1000pcs | $30.60 | In stock |
|
| od22-mm / 1000pcs | $31.30 | In stock |
|
| od23-mm / 1000pcs | $32.10 | In stock |
|
| od24-mm / 1000pcs | $32.90 | In stock |
|
| od25-mm / 1000pcs | $33.70 | In stock |
|
| od26-mm / 1000pcs | $34.40 | In stock |
|
| od27-mm / 1000pcs | $38.80 | In stock |
|
