CS 1.5mm NBR Oring OD 34 35 36 37 38 40 mm thickness,Oil resistance,rubber seal o-ring liquid sealing gasket water proof

CS 1.5mm NBR Oring OD 34 35 36 37 38 40 mm thickness,Oil resistance,rubber seal o-ring liquid sealing gasket water proof

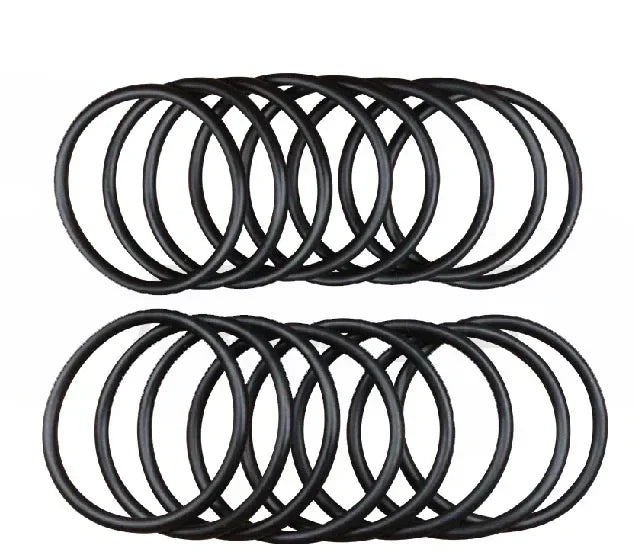

Item Name: rubber O-Ring

Material:NBR Rubber

Color:Black

Spec:thickness and Outer diameter

example:

OD 40 X1.5 mm 1000Pcs

means Outer diameter of O-ring is 40 mm

thickness is 1.5mm

quantity maybe is different by sizes

CS   Oring line thickness(mm)

ID    Oring inner diameter(mm)

OD    Oring outer diameter(mm)

For more details pls contact us.

Information about material

Nitrile rubber (NBR):MaxTemperature 100 Celsius,good resistance to oil

Silicone rubber:(VMQ):MaxTemperature 200 Celsius,common oil resistant ,non-toxic good waterproof,

Viton:Tmax 280,good oil-resistant,wear – resistant corrosion – resistant

EPDM:Tmax 150,Good Oxidation resistance, ozone resistant and anti erosion,Common oil resistant.

polytetrafluoroethylene(PTFE):Tmax 280,non-stick very non-reactive Acid alkali resistance, resistance to organic solvents extremely low coefficient of friction.

Advantage:

NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkalines.

Weak point:

Not suit for polar solvent,ex.ketone,Ozone,nitro-hydrocarbon,MEK,chloroform

Application:

Fuel container , lube oil container,Hydraulic oil of oil ,silicone lube,water,

diester lube sealing.It’s widely used and lower cost for oil.
