CS 1.5 mm Fluororubber O ring OD20 21 22 23 24 25 26 27 28 29 30 mm outer dia tank fuel joint rubber seal Fuel solvent FKM
Price range: $15.00 through $20.30
Description

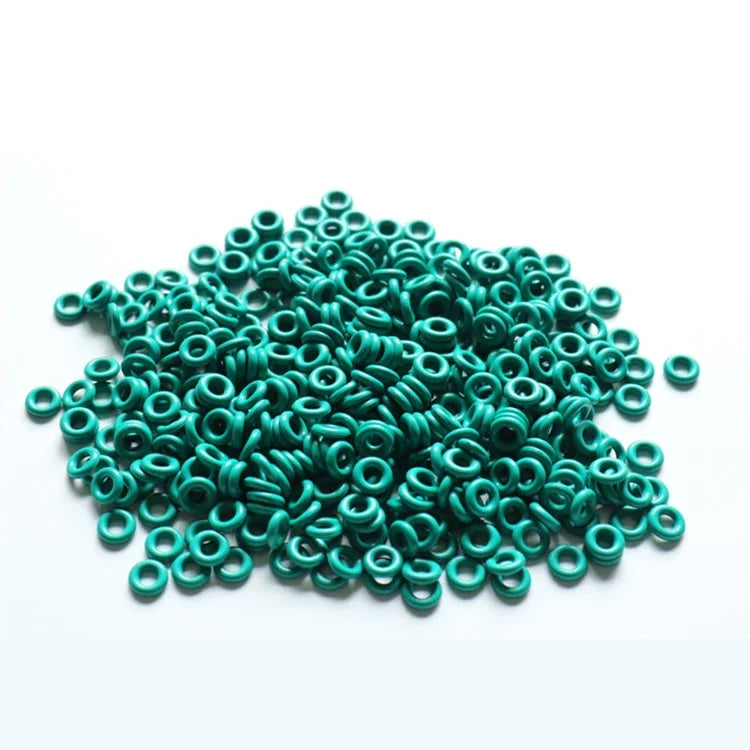

CS 1.5 mm Fluororubber O ring OD20 21 22 23 24 25 26 27 28 29 30 mm
outer dia tank fuel joint rubber seal Fuel organic solvent FKM
Name :O-ring
Material: Fluororubber
Color:Green
Spec:thickness 1.5 mm and Outer dia diameter
Outer dia: 4-60mm
Eg: “OD 9p5mm” means size is Outer dia 9.5mm
CS Oring line thickness(mm)
ID Oring inner diameter(mm)
OD Oring outer diameter(mm)

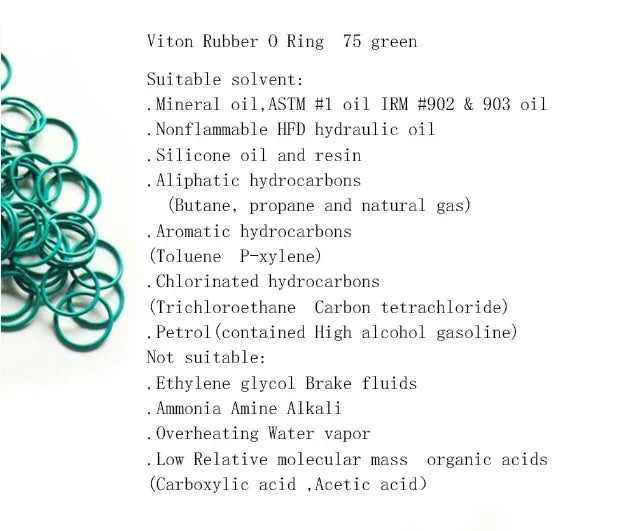

Information about material
Advantage:
Good oil resistance, water resistance, solvent resistance.
Good pressure resistance, wear resistance and tensile strength
Using for rubber parts of fuel tank, oil tank.
Petroleum hydraulic fluids, gasoline, water, grease, silicone oil, diester lubricants, glycol systems.
Hydraulic oil and other fluid using rubber parts.
Shortage:
Not suitable for polar solvents, such as ketones hydrocarbons, ozone, Nitro, MEK and chloroform.
Not well ozone resistance, weather resistance, not hot air aging
Information about material
Nitrile rubber (NBR):MaxTemperature 100 Celsius,good resistance to oil
Silicone rubber:(VMQ):MaxTemperature 200 Celsius,common oil resistant ,non-toxic good waterproof,
Fluororubber:Tmax 280,good oil-resistant,wear – resistant corrosion – resistant
EPDM:Tmax 150,Good Oxidation resistance, ozone resistant and anti erosion,Common oil resistant.
polytetrafluoroethylene(PTFE):Tmax 280,non-stick very non-reactive Acid alkali resistance, resistance to organic solvents extremely low coefficient of friction.
Advantage:
NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkalines.
Weak point:
Not suit for polar solvent,ex.ketone,Ozone,nitro-hydrocarbon,MEK,chloroform
Application:
Fuel container , lube oil container,Hydraulic oil of oil ,silicone lube,water,
diester lube sealing.It’s widely used and lower cost for oil.
Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.
Flexible, secure payment options for both one-off purchases and recurring bulk orders.
Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.
Specification & price
| Spec | Unit price | Stock | Qty |
|---|---|---|---|
| od-20 / 200pcs | $15.00 | In stock |
|
| od-21 / 200pcs | $15.00 | In stock |
|
| od-22 / 200pcs | $16.90 | In stock |
|
| od-23 / 200pcs | $16.90 | In stock |
|
| od-24 / 200pcs | $17.00 | In stock |
|
| od-25 / 200pcs | $17.00 | In stock |
|
| od-26 / 200pcs | $17.10 | In stock |
|
| od-27 / 200pcs | $20.20 | In stock |
|
| od-28 / 200pcs | $20.20 | In stock |
|
| od-29 / 200pcs | $20.30 | In stock |
|
| od-30 / 200pcs | $20.30 | In stock |
|
