Clear PTFE tube pipe 5×7 6×8 7×9 8×10 10×12 12×14 mm 1/8 1/4 3/8 1/2 inch PFA 3D printer Nozzle feed food grade FEP F46
Price range: $10.70 through $56.60
Description
Clear PTFE tube pipe 5×7 6×8 7×9 8×10 10×12 12×14 mm 1/8 1/4 3/8 1/2 inch
PFA 3D printer Nozzle feed food grade FEP F46
Item name: PTFE Tube
material: ptfe
size: inner dia * outer dia
Eg. 5×7 means the inner is 5mm, outer is 7mm dia
1/8 Inch :Inner 1.58mm ,outer 3.17mm
1/4 Inch :Inner 4.35mm ,outer 6.35mm
3/8 Inch :Inner 6.35mm ,outer 9.53mm
1/2 Inch :Inner 9.6mm ,outer 12.7mm
color :clear
Excellent corrosion resistance:
withstand the role of strong acids (including aqua regia),
strong oxidants, reducing agents and various organic solvents
but the Molten alkali metal, fluorinated medium
and sodium hydroxide higher than 300 ° C
Excellent resistance to insulation:
Volume resistivity can up to 1018Ohm-cm.little affected by Environment factors,
Dielectric loss is small, high breakdown voltage.

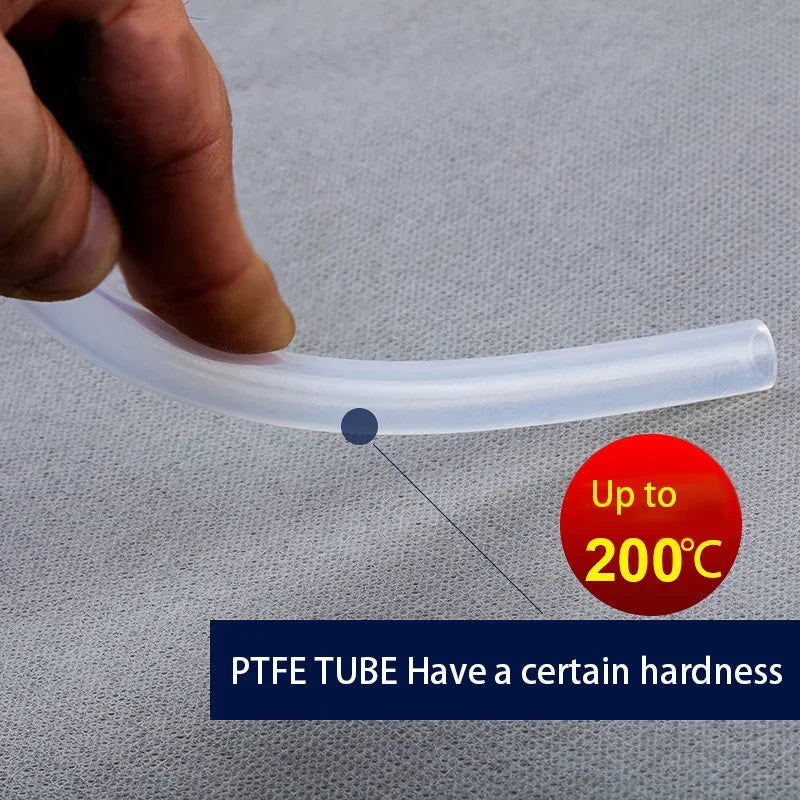

Excellent resistance to high and low temperature:
can be used at -190 ℃ and +260 ℃, range widly , pefformance is stable ,
can be used for high-pressure sterilization
self-lubricating:
It’s the best plastic with smallest friction coefficient, is the ideal oil-free lubricants
Surface non-sticky
solid materials can not adhere to the surface,
it’s have smallest surface energy in solid material
Aging resistance:
Excellent Resistance to radiation and low permeability
the surface and performance remain unchanged when long-term exposure to the atmosphere,‘’
Non- flammable
Limited oxygen index below 90
Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.
Flexible, secure payment options for both one-off purchases and recurring bulk orders.
Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.
Specification & price
| Spec | Unit price | Stock | Qty |
|---|---|---|---|
| 5x7 / 5pcs | $18.80 | In stock |
|
| 6x8 / 5pcs | $22.40 | In stock |
|
| 7x9 / 5pcs | $24.60 | In stock |
|
| 8x10 / 5pcs | $28.90 | In stock |
|
| 8x12 / 5pcs | $56.60 | In stock |
|
| 10x12 / 5pcs | $33.10 | In stock |
|
| 12x14 / 5pcs | $38.50 | In stock |
|
| 1-of-8-inch / 5pcs | $10.70 | In stock |
|
| 1-of-4-inch / 5pcs | $17.60 | In stock |
|
| 3-of-8-inch / 5pcs | $37.50 | In stock |
|
