clamp tube steel fan/cone jet spray nozzle plastic holder 3/4 1 1.2 1.5 2 inch pipe steel clamp tube clip mist water sprayer
Price range: $44.30 through $50.20
Description

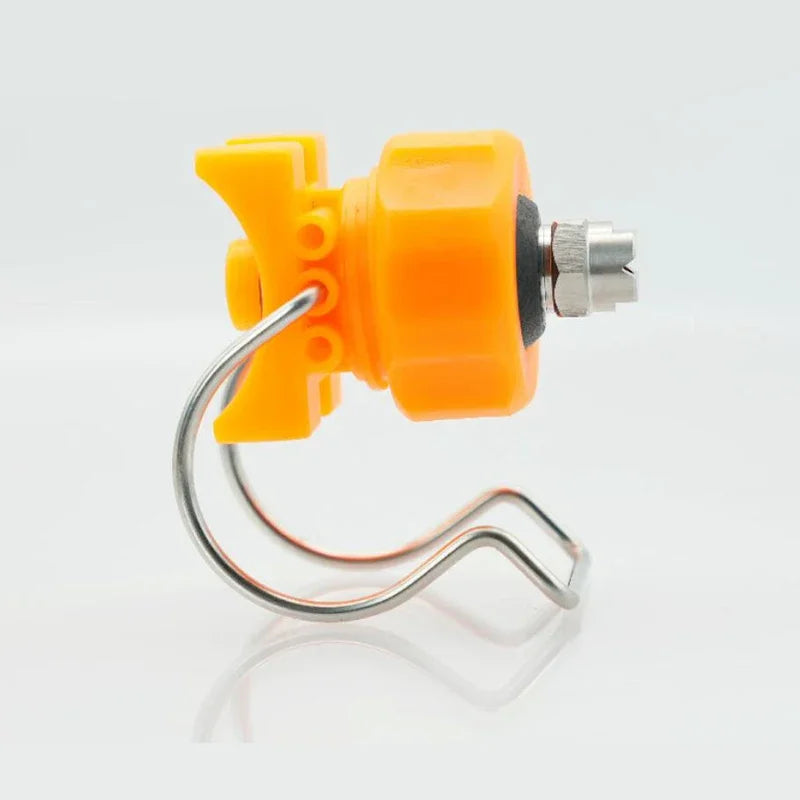

clamp tube steel fan/cone jet spray nozzle plastic holder
3/4 1 1.2 1.5 2 inch pipe steel clamp tube clip mist water sprayer
Item Name:Single clip Plastic nozzle base and 304 nozzle
Material:PP Plastic sprayer , 201 Steel clip and 304 nozzle
Working force:0.3-4kg

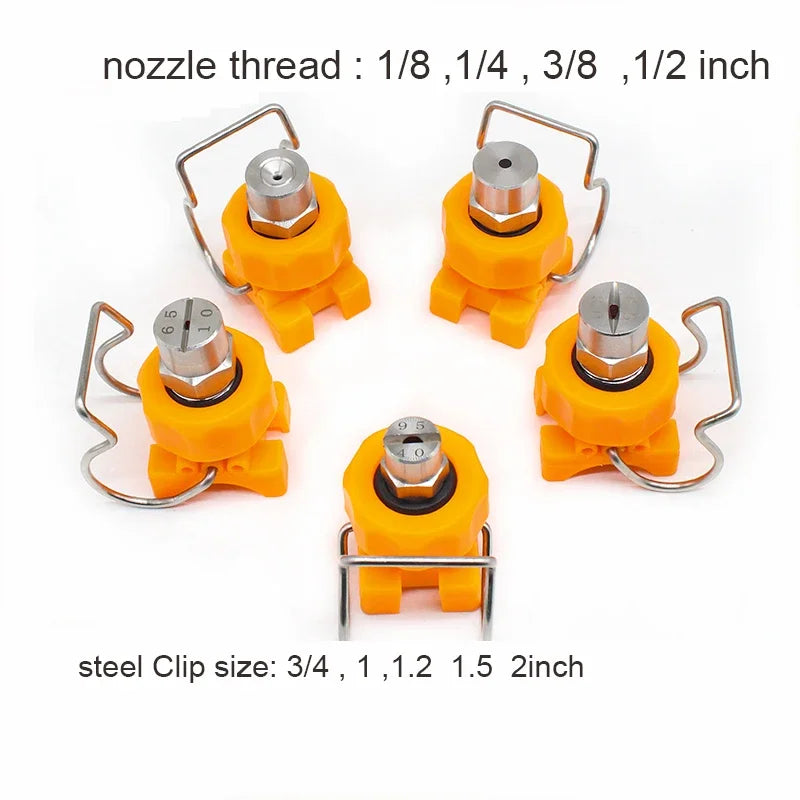

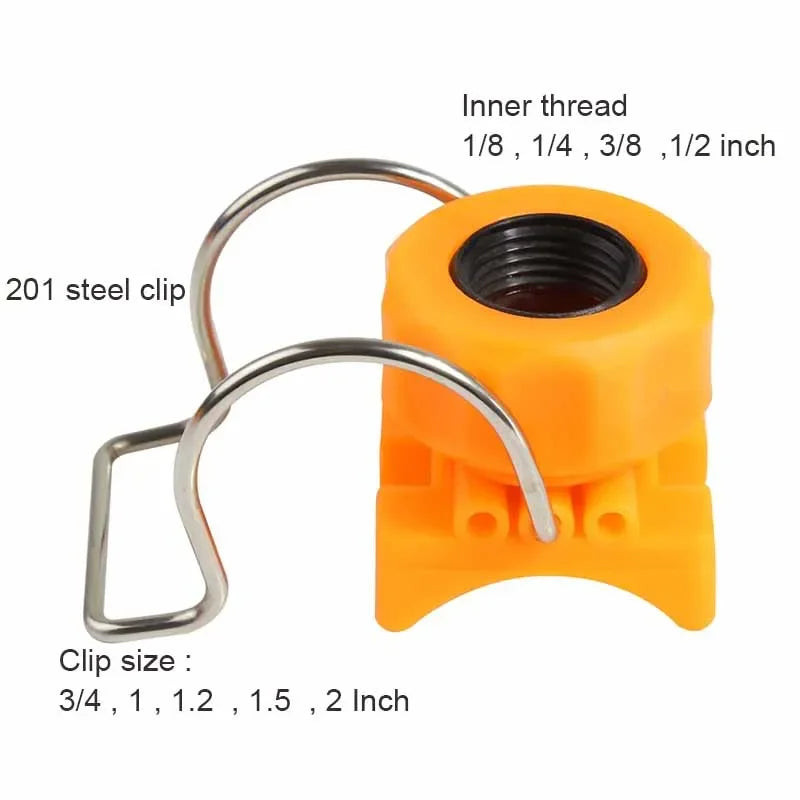

Spec:steel clip size * black ball inner thread (BSPT)
Eg:
Cone shape : “3of4inch cone1.5mm” means the steel clip is 3/4 inch
and 1/4 inch cone jetting nozzle ,hole dia 1.5mm
Fan shape “3of4inch fan6510 ” means the steel clip is 3/4 inch
and 1/4 inch 304 nozzle , hole code is 6510 ;
Steel clip suit for Pipe below size:
3/4″ =DN20 =25-27mm
1’=DN25=32-35mm
1.2″=DN32=38-43mm
1.5’=DN40=44-51mm
2’=DN50=54-60mm
Pipe Openning ;14-20mm(usually 14&16mm)
Below picture is for other products information : pls contact us
Below for information, only selling the base here
Application:
Metal cleaning degreasing, phosphating surface treatment of other low-pressure spray,air conditioner humidifier cleaning of surface treatment formetal degreasing,
phosphating other low-pressure spray, air conditionerhumidifier
Industry
Iron and steel, machinery, electronics, chemical industry, environmental protection,
painting, electroplating, textiles, automotive, pulp and paper,pharmaceutical, food

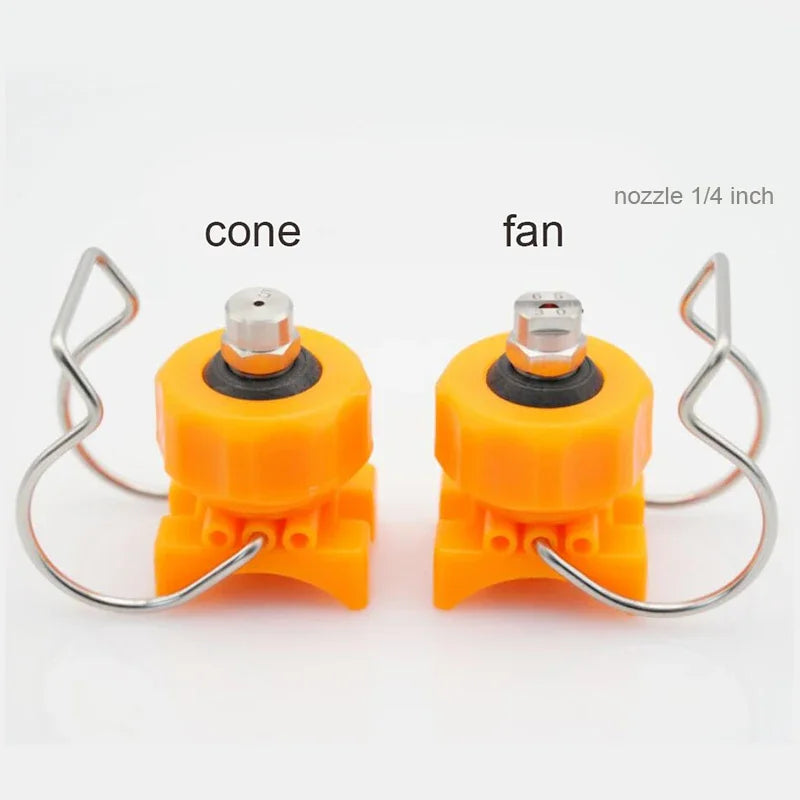

there are 3 mist shape you can choose
fan solid cone hollow cone
this screw sprayer nozzle using for industry cleanning cooling,dust elimination
Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.
Flexible, secure payment options for both one-off purchases and recurring bulk orders.
Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.
Specification & price
| Spec | Unit price | Stock | Qty |
|---|---|---|---|
| 2inch-fan6510 / 10pcs | $50.20 | In stock |
|
| 2inch-cone1-5mm / 10pcs | $50.20 | In stock |
|
| 1inch-fan6510 / 10pcs | $45.40 | In stock |
|
| 1inch-cone1-5mm / 10pcs | $45.40 | In stock |
|
| 3of4inch-fan6510 / 10pcs | $44.30 | In stock |
|
| 3of4inch-cone1-5mm / 10pcs | $44.30 | In stock |
|
| 1-5inch-fan6510 / 10pcs | $47.00 | In stock |
|
| 1-5inch-cone1-5mm / 10pcs | $47.00 | In stock |
|
| 1-2inch-fan6510 / 10pcs | $46.30 | In stock |
|
| 1-2inch-cone1-5mm / 10pcs | $46.30 | In stock |
|
