1/4',3/8.1/2 3/4 inch Venturi mixing nozzle fluid mixer pp Plastic,electrode-position chemical Container liquid nozzle
1/4',3/8.1/2 3/4 inch Venturi mixing nozzle fluid mixer pp Plastic,electrode-position chemical Container liquid nozzle - Image 2
1/4',3/8.1/2 3/4 inch Venturi mixing nozzle fluid mixer pp Plastic,electrode-position chemical Container liquid nozzle - Image 3

1/4′,3/8.1/2 3/4 inch Venturi mixing nozzle fluid mixer pp Plastic,electrode-position chemical Container liquid nozzle

✓ In stock ✓ Low MOQ ✓ Fastener specialist ✓ Custom & OEM

Price range: $16.70 through $42.80

数量单价
≥ 1$16.70
Request a quote

Description

modname=ckeditor

1/4′,3/8.1/2 3/4 inch Venturi mixing nozzle fluid mixer pp Plastic,electrode-position chemical Container liquid nozzle

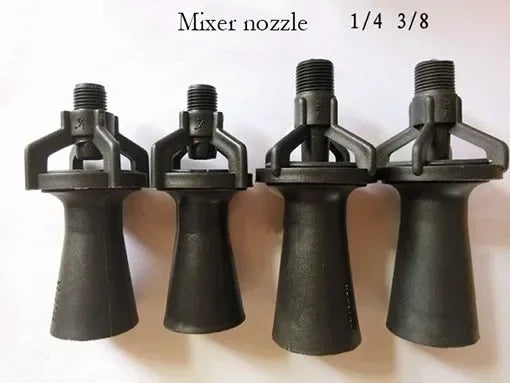

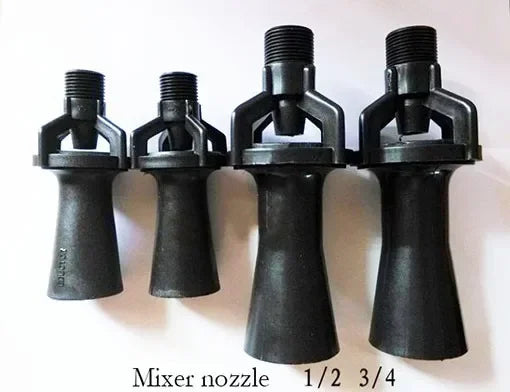

Name :Mixing plastic nozzle

Thread spec:BSPT(Please select right thread size)

Material:PP plastic

Other Spec, click below link

1/4 to 3/4 inch Stainless steel




Other Spec, click below link

1/4 To 3/4 inch  PP Plastic



Application:

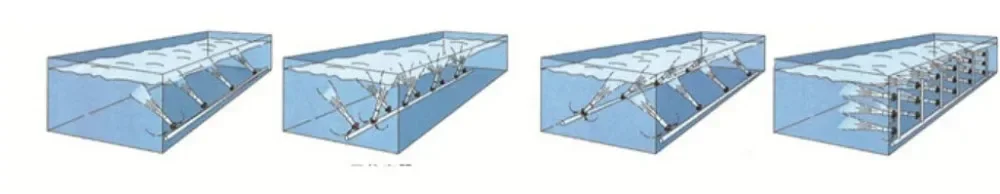

L/ LN type liquid container mixed device, can effective to improve youe mixing effection  without large cost. this device can exchange container bottom and top area to make liquid ingredients mixed uniform,and just need small power pump to completed big    capacity of mixing solution, thus save energy. Liquid container mixers can form a large flow
of circulation, to prevent clogging the spray holes.

Using for : chemicalraw materials mixing,platingtankmixing,other liquid in a container need to mix


How to install on the pipe

Fast, tracked worldwide delivery with trade-friendly terms. Our team supports you from the first quote to receipt of goods.

Lead timeIn-stock items ship within 24 hours; bulk and custom orders 5–10 business days.
Minimum orderLow MOQ with volume pricing tiers for trade buyers.
Worldwide deliveryDHL, FedEx and sea freight — fully tracked to your door.
Returns30-day returns on unopened items; free replacement if damaged in transit.
Customer serviceDedicated trade team, Monday–Friday.
Need help?Contact our trade team →

Flexible, secure payment options for both one-off purchases and recurring bulk orders.

Accepted methodsVisa, Mastercard, Amex, PayPal and bank transfer (T/T).
Secure checkoutSSL-encrypted and PCI-compliant — your data stays safe.
Trade termsNet 30 / 60 for approved accounts; deposit + balance for large orders.
CurrencySettled in store currency with multi-currency checkout.
Trade accountApply for a trade account →

Standard specifications across our full range. Custom dimensions, finishes and grades available on request — contact our trade team for a tailored quote.

Material Carbon steel / Stainless steel
Material grade 8.8
Finish Zinc plated
Thread standard DIN 933 / ISO 4017
Head type Hex head
Tensile strength 800 N/mm²
Coating Zinc plated
Country of origin CN
SKU —
Bulk pricing

Specification & price

Box MOQ — 2,000 pcs / box
Spec Unit price Stock Qty
1-of-4-inch / 10pcs $16.70 In stock
3-of-8-inch / 10pcs $24.30 In stock
1-of-2-inch / 10pcs $33.70 In stock
3-of-4-inch / 10pcs $42.80 In stock
